4-Head Automatic Liquid Filling Machine, Digital Control Liquid Filler Machine, with Belt Conveyor Desktop Version, for Beverage, Soy Sauce Vinegar, Edible Oil~/

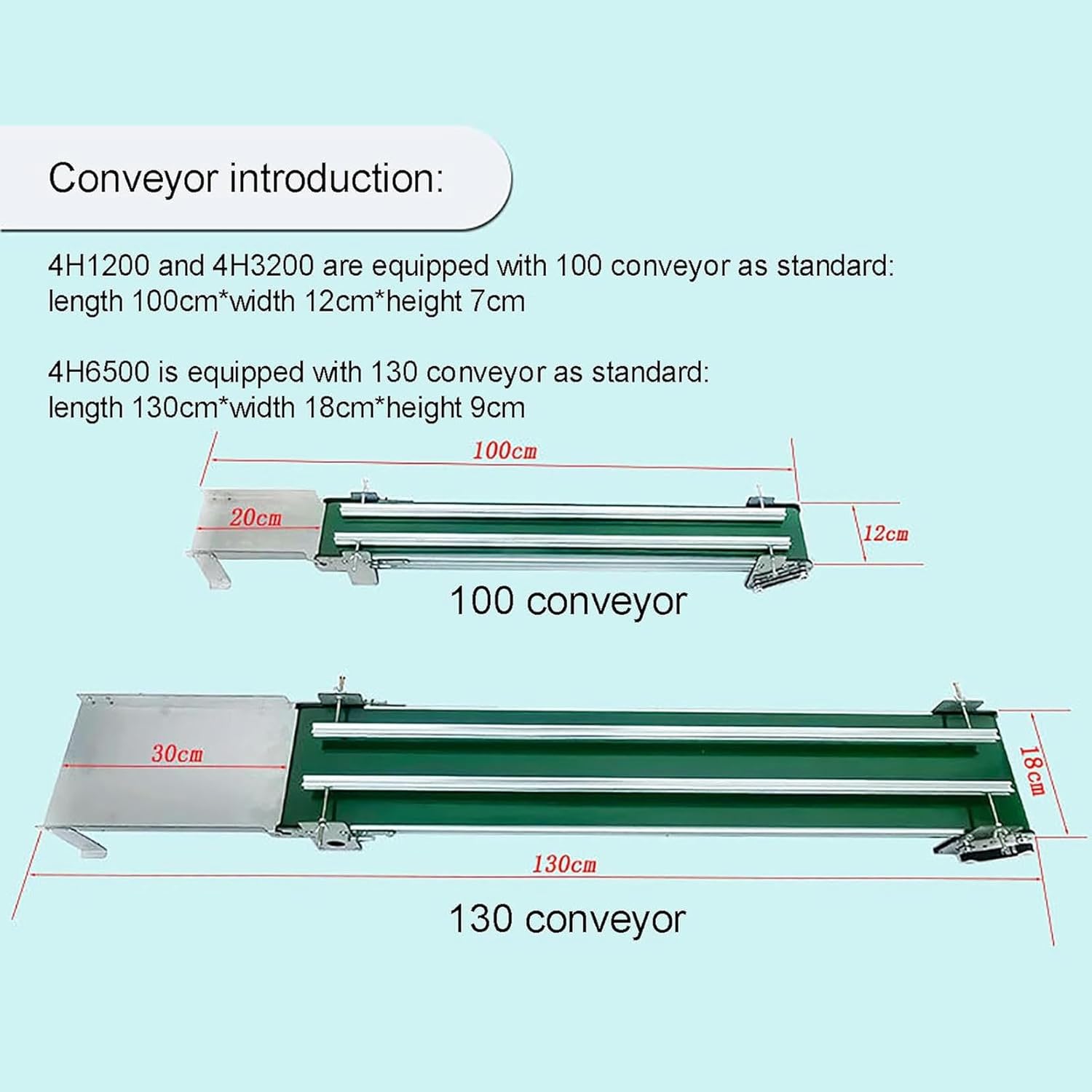

Product Features Error adjustment, speed adjustment, unit adjustment, other settings Speed ​​adjustment, press 0-9 to enter a value, the input value range: 1-100. Conveyor belt speed 10-100 adjustable. Language selection: You can choose "Chinese CHN" and "English ENG" Product Parameters Voltage/power: 220V/80W Filling range: 1~500ml Water pump type: peristaltic pump Water pump flow: 4*1.2L/min Number of filling heads: 1~4 Filling head diameter: 6mm+3mm Filling height: 4~25cm adjustable Water pipe material: silicone pipe Water pipe specifications: inner diameter 6*outer diameter 9mm Water pipe length: 2 meters Host size: 22*18*18cm Host packaging: 35*25*25cm, 5kg Conveyor size: 100*12*7cm Conveyor packaging: 90*16*16cm, 5kg Open loop version: Bottles need to be placed close together. Language selection: switchable between Chinese and English Applicable scenarios: liquid filling, essential oil, essence, liquor, etc. Four filling heads working at the same time can greatly improve the filling efficiency. It can also be set to any number of 1 to 4, which is very flexible to use.

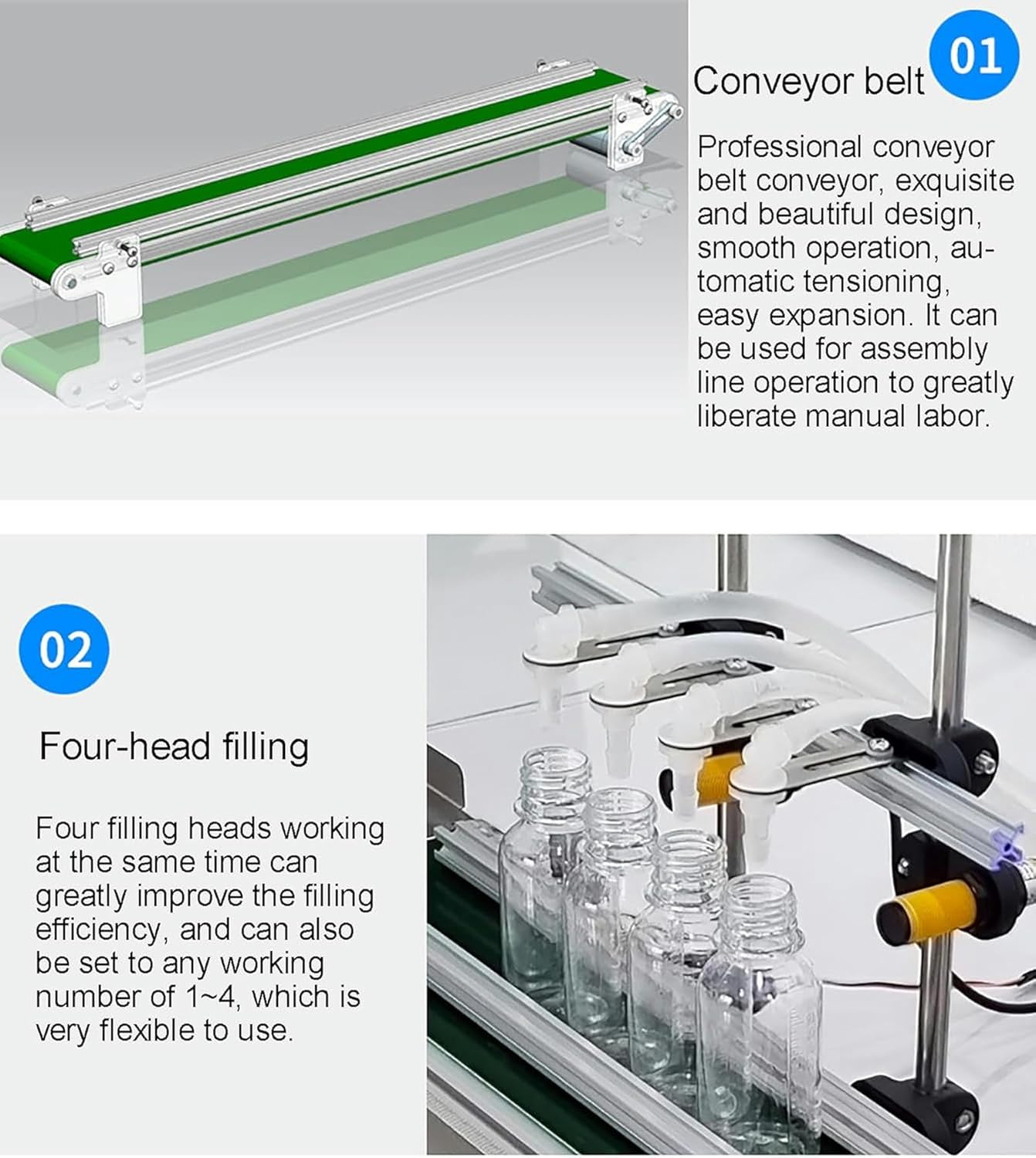

• 4-Head Liquid Filling Line: This compact 4-nozzle automatic line integrates liquid filling machine, belt conveyor, and infrared sensor. It has the automatic sensing, filling, and transportation functions similar with automatic filling lines. You can complete automated production work on any workstation, making it very suitable for small enterprise production!
• Application Of Bottles: The bottle’s diameter should be within 20-90mm, the inner diameter of the opening should be within 10-80mm, and the height of the bottle should be within 40-250mm. The shape of the bottle is normally should be cylindrical, if your bottles are in other shapes, please confirm with us.
• High work efficiency: The filling machine adopts fully automatic belt transportation to ensure efficient operation, and 5-30 cans can be produced per minute. You can adjust the height of the filling nozzle according to the volume to be filled and the size of the bottle to fully meet different filling needs.
• Suitable for Thin Fluid: Desktop 4-head bottle filling line is suitable for handling thin fluid, such as wine, juice, milk, cleaner detergent, etc. NOT for viscous fluid, such as oil, gel, etc. NOT for chemical solution, such as acetone. NOT for fluid with seeds or pulps.
• Exposed Tube Connection: The connection between the tubing and the pump is exposed on the liquid filling machine’s cg, so that you can easily install or disassemble the tubing for easy cleaning and maintenance. And the motor speed is adjustable, you can adjust the speed of the conveyor to the desired value, or turn it off.
