GPU Copper Water Block GPU Water Cooling Block for Gigabyte RTX 3090 3080Ti 3080 Gaming Eagle Vision OC (with Backplate)

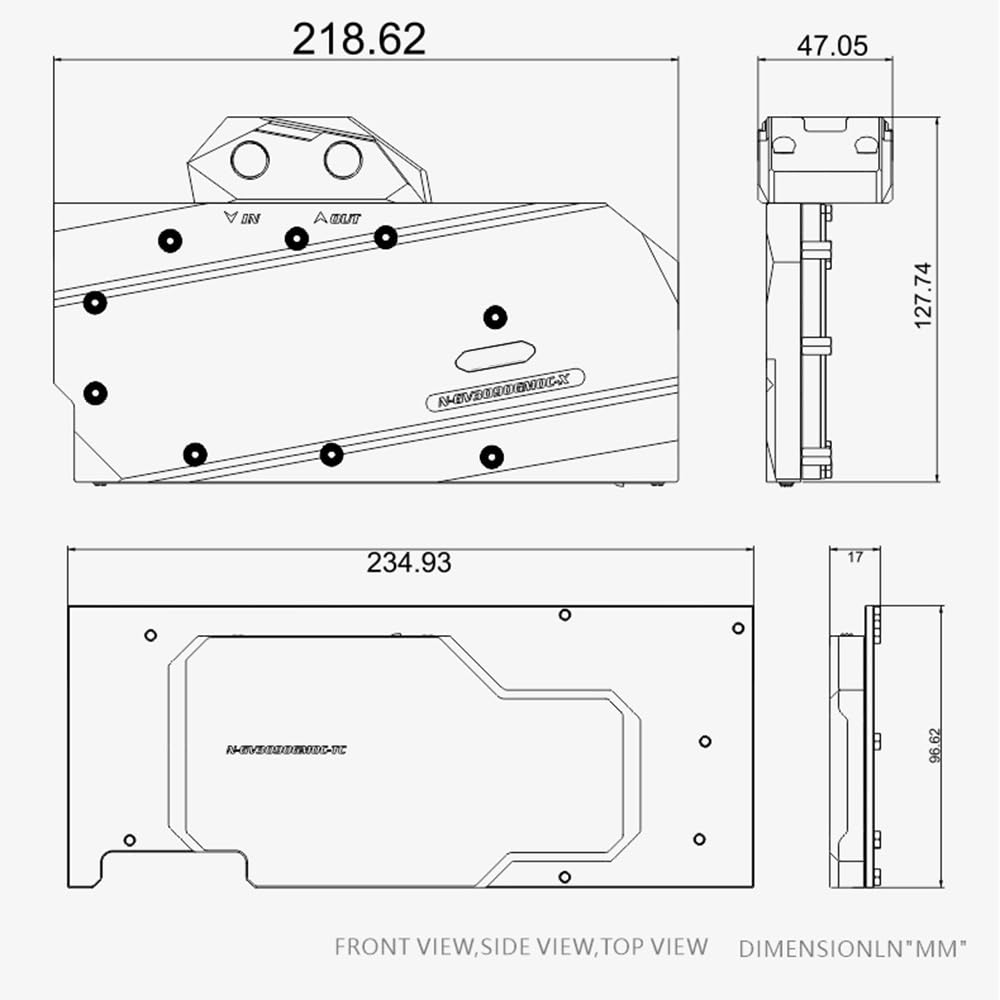

1. Block with 0.5mm micro channel injection design, all designed only for performance! 2. Block using large flow design, even if low raise pump can use it. 3. Block made by high purity copper, and electroplating to prevent oxidation and makes beautiful. 4. Inlet and outlet can change direction free. Tips: 1. Please double check the graphics card detail model to ensure compatibility. Please feel free to contact us if you are not very sure. 2. Prohibit the use of alcohol containing coolant. 3. Graphics card block installation requires a certain skill and experience, because the graphics card manufacturing tolerances may have a certain impact on the block installation, we can assist buyers to solve such problems, but this can not be the basis of returns. Product parameters: Screw thread:G1/4'' Color:Transparent Size:Reference size chart Material:Aluminum/Copper/Arcyic Process:Plating/Polishing Compatible: Gigabyte GeForece RTX3080 Gaming OC 3X 10G Compatible: Gigabyte GeForece RTX3080 Eagle OC 10G Compatible: Gigabyte GeForece RTX3080 Vision OC 10G Compatible: Gigabyte GeForece RTX3080 Gaming Box Compatible: Gigabyte GeForece RTX3080 Turbo 10G Compatible: Gigabyte GeForece RTX3080Ti Gaming OC 3X 12G Compatible: Gigabyte GeForece RTX3080Ti Eagle OC 12G Compatible: Gigabyte GeForece RTX3080Ti Vision OC 12G Compatible: Gigabyte GeForece RTX3080Ti Turbo 12G Compatible: Gigabyte GeForece RTX3090 Gaming 3X OC 24G Compatible: Gigabyte GeForece RTX3090 Eagle OC 24G Compatible: Gigabyte GeForece RTX3090 Vision OC 24G Compatible: Gigabyte GeForece RTX3090 TURBO 24G Before buying, please refer to the third picture to compare with the buyer’s graphics card PCB to avoid buying errors, or contact the seller. Product List: GPU LED WaterBlock*1 Thermal pads*1 RBW LED light control line*1 Water caps*2

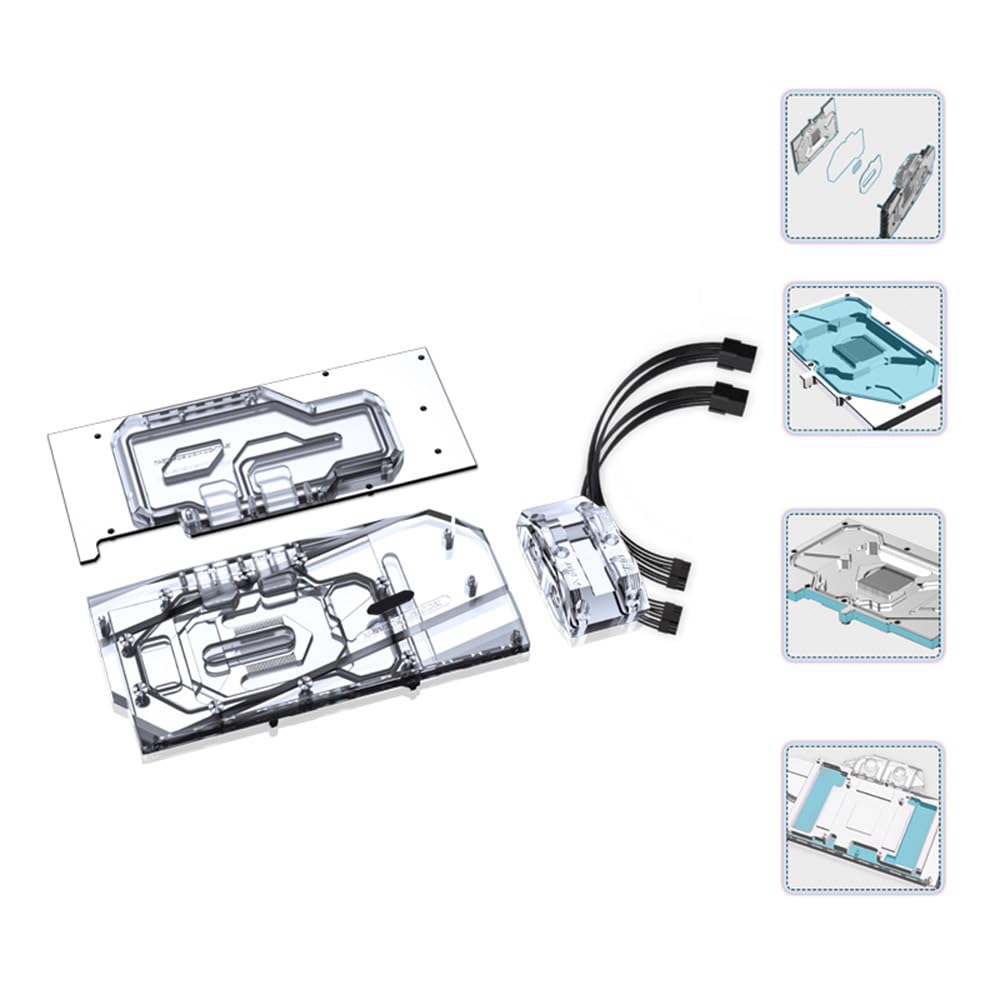

• Second generation three-layer structure design,increase water flow coverage area,make water flow more scientific,improve heat dissipation efficiency.
• Copper plate is integrated with high-precison CNC processing,with high-precision CNC processing,with large water flow coverage area,and the cavity is scientifically rigorous fluid analysis,without dead angle of water flow,thus providing effective heat dissipation for GPU/MOS/VRAM.
• 10MM thick copper plate design,material enough,surface electroplating treatment.Anti-oxidation,corrosion resistance,due to the use of thick copper plate,the sealing ring can be designed with a single layer,relative to the thin copper plate with multiple sealing ring structure,effectively reduce the risk of leakage.
• Copper plate adopts large area hollowing out to reduce weight,realize lightweight design,reduce cold head weight,protect PCB from deformation,The height of several positioning columns in the grooves is optimized to ensure that they fit the required heat dissipation components strctly and cover the GPU core,VRAM and power supply MOS.
• Please double check the graphics card detail model to ensure compatibility. If you are not very sure，please refer to the third picture in the description picture and compare whether the PCB in the picture is the same as that of your graphics card.Or Please feel free to contact us.
