PIR Motion Sensor LED Stair Lights Indoor Outdoor Stairway Step Staircase Lighting Kit with 3000K Warm White COB Flexible LED Linear Light
Product details
| Management number | 208389622 | Release Date | 2026/03/22 | List Price | $68.00 | Model Number | 208389622 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- General Model: (1)Voltage: DC12V. (2)Power: (Standby Mode)0.6W, (20 Strips Dim Brightness)8W, (20 Strips Normal Brightness)288W, (36 Strips Normal Brightness)520W. (3)Working Temperature: -10℃-45℃.

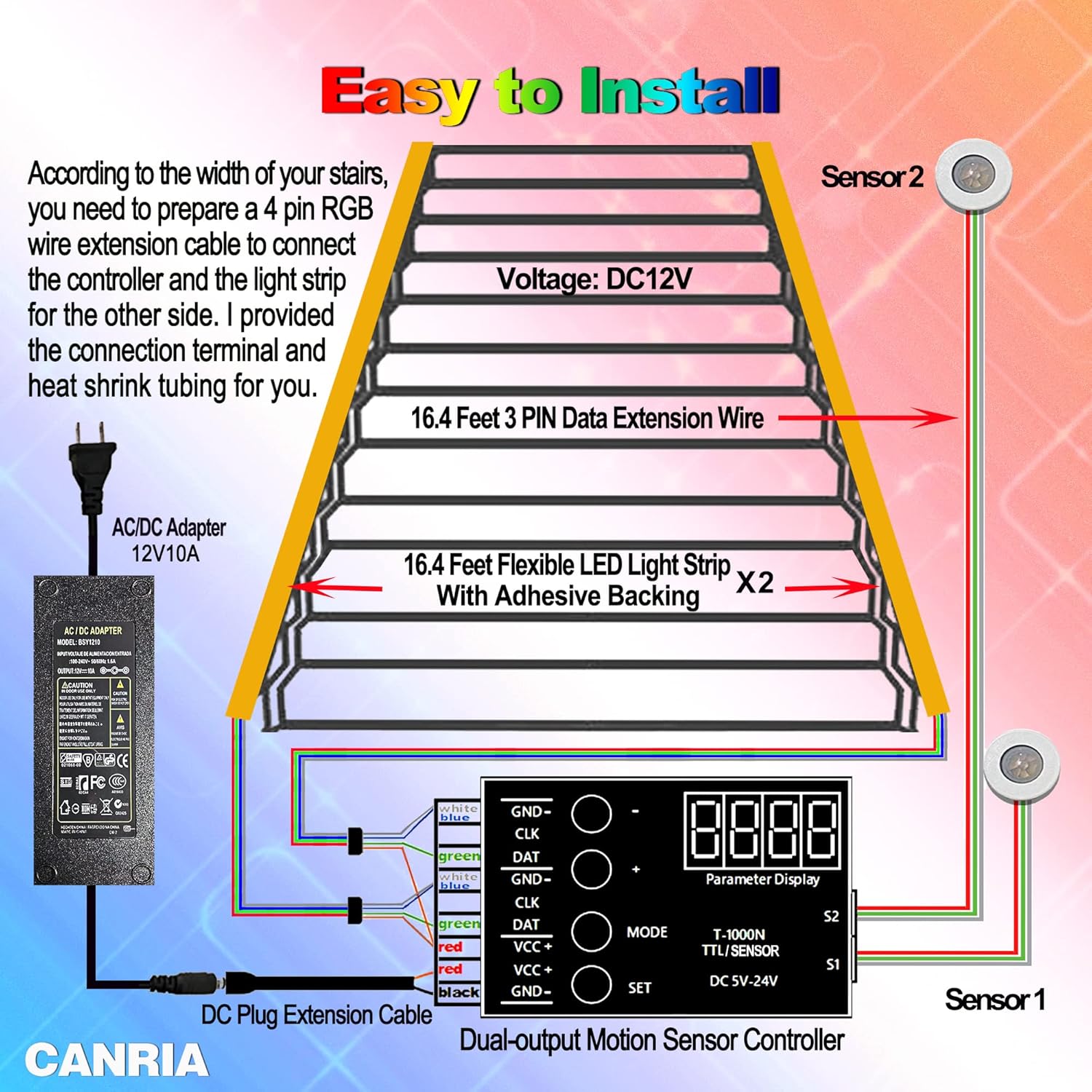

- This product is used for the stair tread monochromatic light strip. There are 2 induction modules that can be connected to 2 sensors, which are installed at the entrance and exit of the stairs respectively. When people walk though stairs, the LED strips gradually lights up ahead.
- Products Include: (1)36-channel staircase sensor LED controller. (2)PIR-MX20 infrared human induction sensors (4 pack). The sensor triggers infrared radiation emitted by human body temperature. (3)16.4ft/5m motion sensor extension cable. Connecting sensor No.2 and controller. (4)4.9ft/1.5m COB-8MM-480LEDs light strips (20 pack). You can trim the length of the LED strip to fit your staircase.
- (5)19.7ft/6m (10 pack) and 9.8ft/3m (10 pack) LED light strip extension cable. Connecting COB LED strips and controller. (6)LRS-150-12 switching power supply. AC100V-240V. Please notice the input voltage range(110V/220V) on the red paddle. (7)Power extension cable 3.3ft/1m. Connecting switching power supply and controller. Need to distinguish poles of connection. (8)Power extension cable with plug(2pin). Connecting switching power supply and socket. No need to distinguish poles of connection.
- Nixie tube display and key function list: (1)In the initial state of booting, the digital tube displays: 6—L. (2)Press SET to toggle the item. Pressing - or + to adjust the value. (3)L-XX: 04-36, number of light strips(stair step).
- (4)P-XX: 01-07, program effect. P-01 normal brightness, flowing water effect, staircase lights turns on step by step. P-02 normal brightness, chasing effect. P-03 normal brightness, meteor with tail. P-04 after normal brightness flowing water effect ends, permanently hold dim bright lighting. P-05 overall breathing effect. P-06 normal brightness overall lighting. P-07 flowing water effect normal brightness to dim.
- (5)H-XX: 01-99, program effect speed. 01 is the fastest and 99 is the slowest. (6)E-XX: 01-99, delay time of stair lights. 99 is the longest, about 150 seconds. (7)Press SET to return to 6--L, save the new settings. The controller will work according to the newly set parameters next time.
- 36 channels staircase sensor controller is multi-function LED controller. For the convenience of installation and use, so we only integrate some basic functions and program effects.
| Brand | CANRIA |
|---|---|
| Color | 3000K Warm White |
| Style | Modern |
| Theme | People |
| Voltage | 12 Volts (DC) |
| Wattage | 5.2E+2 |
| Material | Plastic, Metal, Silicone, etc |
| Item Weight | 5.85 pounds |
| Light Color | 3000K Warm White |
| Manufacturer | CANRIA |
| Power Source | Corded Electric |
| Switch Style | Motion Sensor |
| Luminous Flux | 2304 lumen |
| Specific Uses | Stairway |
| Control Method | Remote |
| Shade Material | Plastic |
| Controller Type | Remote Control |
| Light Direction | LED |
| Special Feature | Motion Sensor |
| Special Features | Motion Sensor |
| Item model number | CANRIA36SEN |
| Light Source Type | LED |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 15.2 x 11.26 x 3.39 inches |
| Included Components | 36-channel staircase sensor LED controller, PIR-MX20 infrared human induction sensors (4 pack), 16.4ft/5m motion sensor extension cable, 4.9ft/1.5m COB-8MM-480LEDs light strips (20 pack), 19.7ft/6m (10 pack) and 9.8ft/3m (10 pack) LED light strip extension cables, LRS-150-12 switching power supply, power extension cable 3.3ft/1m, power extension cable with plug(2pin) |
| IndoorOutdoor Usage | Indoor |
| Water Resistance Level | Not Water Resistant |
| Number of Light Sources | 36 |
| Switch Installation Type | Floor Mount |
| EU Energy Efficiency Label | 4.43 lumen/watt |
