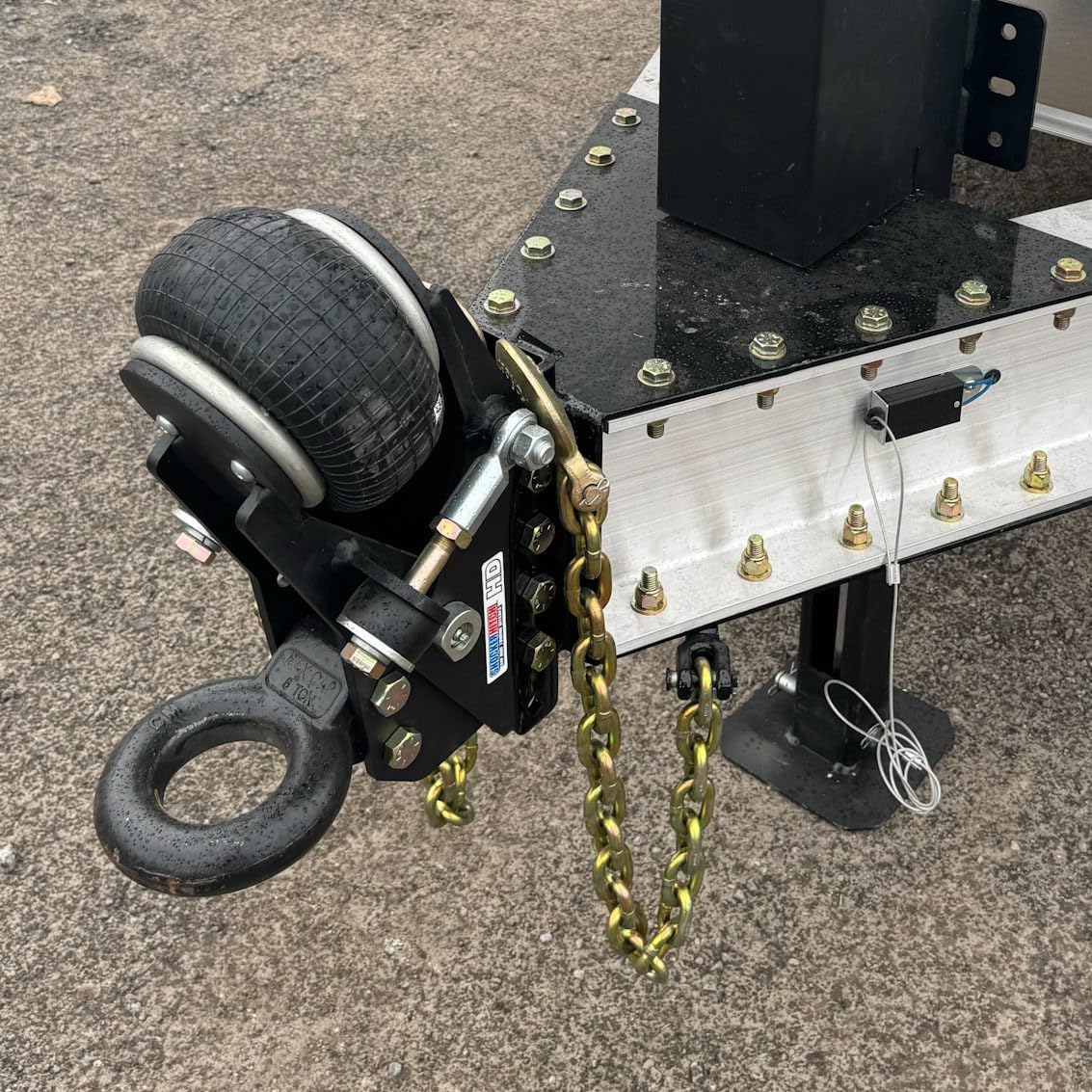

Shocker HD 20K Air Pintle Ring Trailer Tongue Mount 20,000 lbs, Vertical Channel Mount

The Shocker Air trailer tongue mount with a pintle ring is made for heavy duty trailers used on end dumpers to race hauler stacker trailers. Bolts to trailer tongue vertical channel or flat plate on front of trailer a-frame style trailer. Often used on equipment and end dump trailers. Features at 20,000 lb towing capacity. Upgrade your trailer with air ride technology. Pintle ring size is 6" OD x 3" ID. This air spring bag pintle ring trailer tongue mount is great for reducing trailer fatigue and made for trailers and pickups with stiff suspension. Smooth out your ride. Plus is great if you have an end dump trailer or HD flat bed trailer and you never know what pickup truck will be hauling it. The Shocker air is attached to your trailer and ready for whatever truck is pulling it. Simple bolt on installation in minutes. Choose from the vertical channel mount & secure with 5/8" pins or 5/8" x 4-1/2" long bolts or square plate mount (4-1/2" bolt pattern and bolts into place). Shocker air provides the ultimate smooth ride. The Shocker Air is a miniature air suspension unit mounted between your truck and trailer. This Shocker mounts by sliding into a standard receiver tube. Bolt this to the front a-frame of your trailer and join the smooth towing movement. This military style lunette ring, hooks up to a pintle hook / military style hitch mount. Great for heavy duty trailers, farm applications, race trailers, stackers, end dumps, equipment trailers & flat beds equipped with 3" vertical channel or 4 bolt flat plate on front of trailer tongue.The air spring bag is mounted above the trailer tongue for maximum ground clearance. You will find the advantage of the Air Shocker trailer tongue mount with pintle ring is your ability to adjust air pressure for best ride and load control.Air Ride 10-Ton Pintle Ring Hitch: Shocker Air is designed with a built-in air ride system for a smoother towing experience. Featuring a built in height adjustm

• Bolt on Air Ride Pintle Ring: Bolts to the front of your trailer tongue. Shocker Air Tongue Mount with a built-in 20,000 lbs air ride system for smoother towing. Instant Air Ride for Your Trailer: Smoother safer towing. Improves your ride, reduces wear & tear on pickup & trailer. No more jarring every time you cross a section divider. Shocker air tongue mount with built in air ride & bump cushions, absorbs the thumps, bumps, jerks & bangs on whatever road you travel.
• 20,000 lbs GTW & 2,000 lbs Tongue Weight Capacity: 20,000 lb rated towing capacity with heavy duty pintle ring for using with pintle hook. 2,000 lbs tongue weight rating. Fine tune for your towing weight
• Includes HD Forged Pintle Ring: Heavy-Duty 10-Ton Lunette Pintle Ring is 6" OD x 3" ID. HD Design: Great for heavy duty trailers, farm applications, race trailers, stackers, end dumps, equipment trailers & flat beds equipped with 3" vertical channel or 4 bolt flat plate on front of trailer tongue.
• Air Tongue Mount with Vertical Channel Mount has Pintle Ring - Mounts to Front of Trailer Tongue: This Mount is For Trailers W/3-1/2" Wide Vertical Channel, most use 5/8" bolts or pins that are 4-1/2" long to mount to trailer. Fits 3-1/2" wide OD / 3" wide ID vertical channel on trailer front w/2" center on center bolt pattern. DOES NOT Include Trailer Mount Bolts
• Also works with weight-distribution hitches. Note: The main center pivot bolt on the Shocker Air Tongue Mount is a custom made 1" diameter 1045 medium carbon steel bolt. Heat treated to prevent wear & has machined grease passage for easy lubrication. The yield strength of the 1" pivot bolt exceeds the two 5/8" bolts used to hold the typical ball coupler on the average vertical channel adapter. Need a Vertical Channel? Optional Part# SH-410-C Weld on Vertical Channel Kit Sold Separately
