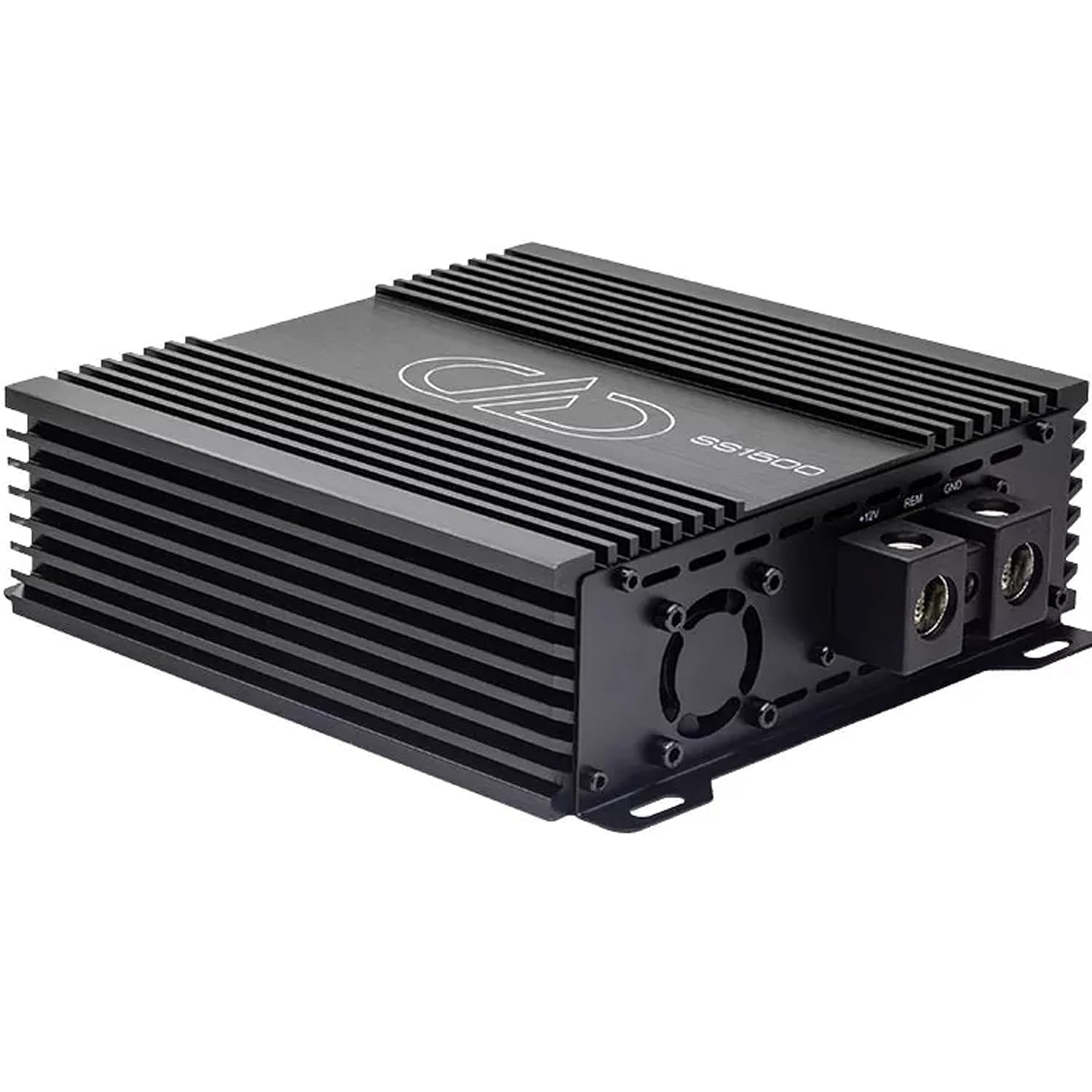

SS1500 Monoblock 1500W RMS Amplifier

SS1500 | DD Audio Digital Designs Monoblock 1500W RMS AmplifierFEATURES: ZVL Linking Module Input 12dB/Oct High Pass 20Hz-80Hz 12dB/oct Low Pass 80Hz-20kHz Heavyweight DD Aluminum Chassis Set Screw Power and Speaker Terminals Remote Gain Control 0 AWG Power TerminalsSPECIFICATIONS: Operating Voltage: 9 - 16 Test Voltage: 14.4 Input Channel(s): 2 Output Channel(s): 1 Continuous Wattage @2ohm: 1100 Continuous Wattage @1ohm: 1500 Dynamic Wattage: 150 RCA Input Voltage Sensitivity: 6 - 0.25 High-Level Input Voltage Sensitivity: 20 - 1.1 RCA Input S/N: > 95 Damping Factor: > 100 THD: <1.0% Frequency Response (Hz): 20 - 20k Sub-Sonic Filter: 20 - 80 Low-Pass Filter: 80 - 20k ZVL Input: Yes Remote Control: Remote Included in Box Power Wire Gauge: 0 Speaker Wire Gauge: 4 Dimensions (Inches): 7.125 x 7.3 x 2.4 Dimensions (MM): 181 x 185 x 60

• The new SS1500 is a half bridge, high speed, full range, class D amplifier with more than enough power to fulfill the majority of system designs. This monoblock comfortably makes in excess of 1500 watts of 20Hz to 20kHz power at less than 1% THD+N, at 1 Ohm. The SS1500 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low cost full bridge amplifiers.
• The design starts with our DD style strong power supply, using a high efficiency toroidal transformer coupled to an oversized cap bank and high current mosfets. Clean power is delivered unstressed thanks to the internal fan cooling and thick walled, DD style aluminum heat sink, contributing to a very small footprint of 7.125” wide x 7.3” deep.
• The preamp section features variable crossovers covering subwoofer and mid/high frequencies as well as the DD ZVL input.
