waveshare Industrial USB to 4-CH, USB to RS232/485/422/TTL Serial Converter, Adopts FT4232HL Chip, Support Linux, Android, Windows 11/10 / 8.1/8 / 7, Safer Isolated Design

Overview The USB TO 4CH Serial Converter is an industrial-grade USB to RS232/485/422 isolated converter and USB to TTL/RS485 converter. It is built-in power isolation, ADI magnetic isolation, TVS protection circuits. The USB TO 4CH Serial Converter is user-friendly with zero-delay automatic receive and transmit conversion. It is suitable for various industrial control devices or applications with high communication requirements. Features 1) Adopts original FT4232HL chip, fast communicating, stable and reliable, better compatibility 2) Supports USB to 4-ch multi-functional serial port, convenient for expanding or debugging various industrial serial port devices 3) Supports USB to 1-ch TTL + 1-ch TTL/RS485 + 1-ch isolated RS485/422 + 1-ch isolated RS232/485 4) Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal 5) Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption 6) Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection 7) Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance 8) Fully automatic transceiver circuit with no delay, ensures fast and stable communication between the USB port and different interfaces, without interfering with each other 9) Onboard TTL serial 3.3V/5V voltage translator, config the TTL level via switch 10) 9 LEDs for indicating the power and transceiver status 11) High quality USB-B connectors, smoothly plug/pull Online Document /User Manual ://bit.ly/40xOVu4 Package Content USB TO 4CH Serial Converter x1 USB Cable ~1.2m x1 Screwdriver x1

• USB to 4-ch Serial Converter : It is the Industrial USB to 4-ch Serial Converter, USB To RS232/485/422/TTL. Supports USB to 4-ch multi-functional serial port, convenient for expanding or debugging various industrial serial port devices; Supports USB to 1-ch TTL + 1-ch TTL/RS485 + 1-ch isolated RS485/422 + 1-ch isolated RS232/485.
• Original Industrial Grade Chip: Onboard original FT232RNL chip, Fast communication, stable & reliable, better compatibility.
• Safer Isolated Design: Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal. Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption.
• Multiple Protection, Safe And Stable: Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & ESD protection. Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance.
• Aluminium Alloy Enclosure: Aluminium alloy enclosure with sand blasting and anodic oxidation, Solid and durable; Wall-Mount Support, More flexible for industrial installation

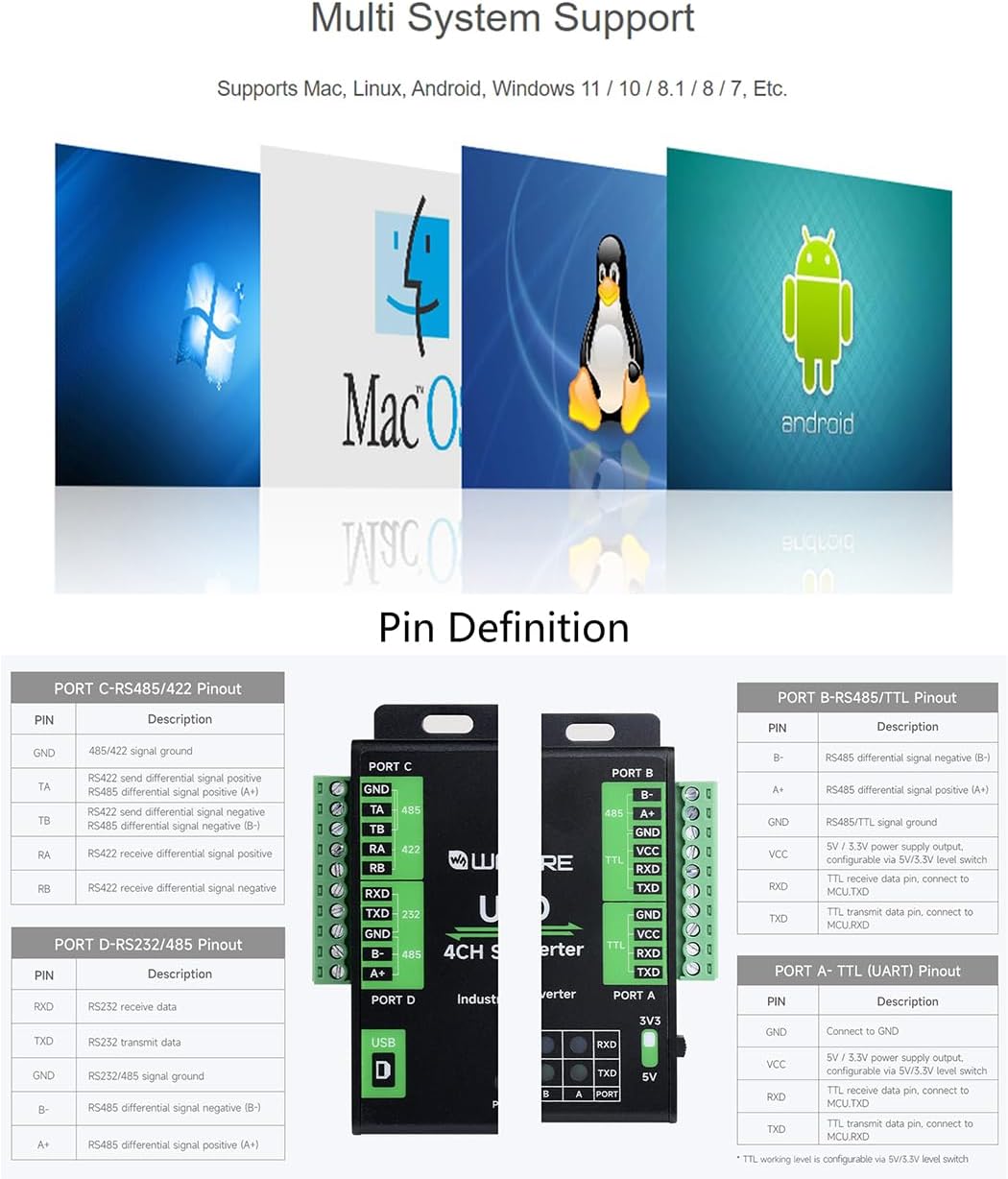

• Multi system Support: Supports Mac, Linux, Android, Windows 11 / 10 / 8.1 / 8 / 7, etc.
